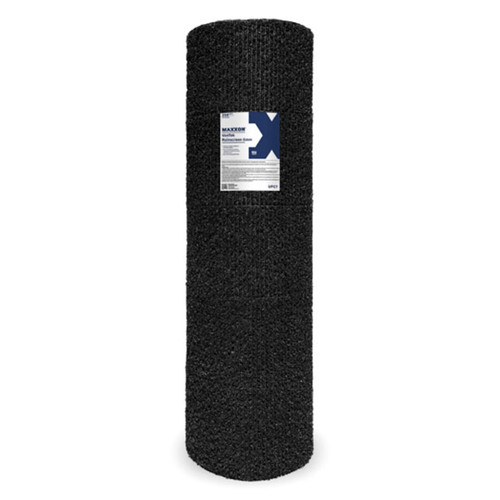

VenTek Rainscreen 6mm, 39in x 61.5ft Roll

Maxxon VenTek™ Rainscreen, 6mm, 39" x 61.5' Roll

Maxxon VenTek™ Rainscreen helps protect exterior wall assemblies from moisture intrusion by creating a ventilated drainage plane behind absorptive cladding. The entangled mesh and breathable spunbond backer fabric allow moisture to drain down and out of the wall system while encouraging airflow that helps inhibit mold growth, rot, and other moisture-related damage.

The 6mm profile creates separation between the exterior cladding and building envelope, providing both drainage and ventilation to support a more resilient wall system. Integrated printed gridlines make measuring, positioning, and installation easier, while the breathable construction helps minimize prolonged moisture contact with the building.

Designed for use beneath absorptive exterior cladding, VenTek™ Rainscreen is compatible with stone, stucco, brick, fiber cement board, wood siding, and similar finishes. This 39" x 61.5' roll provides approximately 200 square feet of coverage for residential and commercial building envelope applications.

Key Features

• 6mm rainscreen thickness: Creates a resilient drainage plane behind exterior cladding to help manage moisture within the wall assembly.
• Drainage and ventilation: Allows moisture to drain while promoting airflow and evaporation behind exterior finishes.
• Entangled mesh construction: Creates separation between the building envelope and exterior cladding.
• Breathable spunbond backer fabric: Supports effective drainage and ventilation while helping reduce moisture contact with the building.
• Moisture management: Helps inhibit mold growth, rot, and other types of moisture-related damage.
• Printed gridlines: Simplifies measuring and layout for faster, easier installation.
• Versatile cladding compatibility: Designed for use under stone, stucco, brick, fiber cement board, wood siding, and other absorptive siding materials.
• 200 sq. ft. coverage: Convenient roll size for residential and commercial exterior wall installations.

Applications

• Exterior wall and cladding systems
• Stone veneer
• Stucco
• Brick
• Fiber cement board
• Wood siding
• Residential construction
• Commercial construction
• Building envelope moisture-management systems

Specifications

• Brand: Maxxon
• Product Line: VenTek™ Rainscreen
• Product Type: Rainscreen Drainage and Ventilation Mat
• Thickness: 6mm
• Roll Width: 39" (99 cm)
• Roll Length: 61.5' (18.7 m)
• Coverage per Roll: 200 sq. ft. (18.6 m²)
• Weight per Roll: 15.8 lbs. (7.17 kg)
• Construction: Entangled Mesh with Breathable Backer Fabric
• Primary Function: Exterior Wall Drainage and Ventilation
• Recommended Cladding: Stone, Stucco, Brick, Fiber Cement Board, Wood Siding, and Other Absorptive Sidings
• Rolls per Pallet: 18
