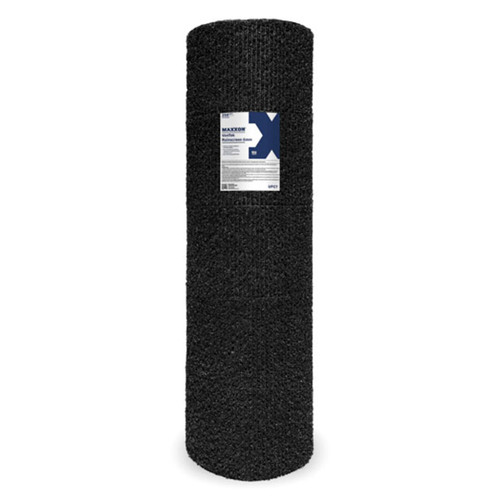

VenTek Rainscreen 6mm, 48in x 65ft Roll

Maxxon VenTek™ Rainscreen, 6mm, 48" x 65' Roll

Maxxon VenTek™ Rainscreen is designed to help protect exterior wall systems from moisture intrusion by creating a ventilated drainage plane behind absorptive cladding. Its entangled mesh construction and breathable spunbond backer fabric allow moisture to drain down and out of the wall assembly while promoting airflow to help reduce the potential for mold growth, rot, and other moisture-related damage.

The 6mm rainscreen creates separation between the building and exterior cladding, supporting both drainage and ventilation within the wall system. Printed gridlines help simplify layout and installation, while the resilient mesh provides a practical way to improve moisture management behind stone, stucco, brick, fiber cement board, wood siding, and other absorptive exterior finishes.

This 48" x 65' roll provides approximately 260 square feet of coverage, offering a convenient format for residential and commercial exterior wall installations where effective drainage and ventilation are needed behind the cladding system.

Key Features

• 6mm rainscreen thickness: Creates a resilient drainage plane behind exterior cladding to help manage moisture within the wall system.
• Drainage and ventilation: Allows moisture to drain while promoting airflow and evaporation behind exterior finishes.
• Entangled mesh construction: Creates separation between the building envelope and exterior cladding for improved moisture management.
• Breathable spunbond backer fabric: Supports drainage and airflow while helping reduce moisture contact with the building.
• Helps prevent moisture damage: Promotes drying to help inhibit mold growth, rot, and other moisture-related problems.
• Printed installation gridlines: Makes measuring, positioning, and installation faster and easier.
• Versatile cladding compatibility: Designed for use beneath stone, stucco, brick, fiber cement board, wood siding, and other absorptive siding materials.
• 260 sq. ft. coverage: Provides efficient coverage for residential and commercial exterior wall applications.

Applications

• Exterior wall and cladding systems
• Stone veneer
• Stucco
• Brick
• Fiber cement board
• Wood siding
• Residential construction
• Commercial construction
• Building envelope moisture-management systems

Specifications

• Brand: Maxxon
• Product Line: VenTek™ Rainscreen
• Product Type: Rainscreen Drainage and Ventilation Mat
• Thickness: 6mm
• Roll Width: 48" (121.92 cm)
• Roll Length: 65' (19.81 m)
• Coverage per Roll: 260 sq. ft. (24.15 m²)
• Weight per Roll: 21.84 lbs. (9.91 kg)
• Construction: Entangled Mesh with Breathable Backer Fabric
• Primary Function: Exterior Wall Drainage and Ventilation
• Recommended Cladding: Stone, Stucco, Brick, Fiber Cement Board, Wood Siding, and Other Absorptive Sidings
• Rolls per Pallet: 18
